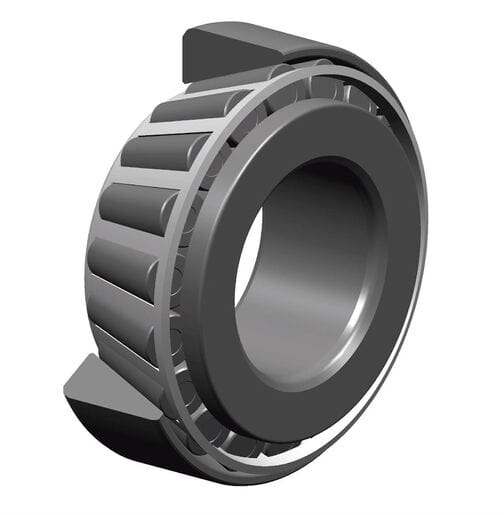

RULMENT,AGRICOL,3TM-63/28CX12NX4/26

d – Internal diameter 31,75 mm
D – External diameter 62 mm
B – Bearing/Inner ring width 19,05 mm
C – Outer ring width 14,288 mm
T – Total width 18,161 mm
d1 – External diameter inner ring 46 mm
a – Charge load application point 13,061 mm
rs – Min fillet radius 3,56 mm
r1s – Min fillet radius 1,3 mm
